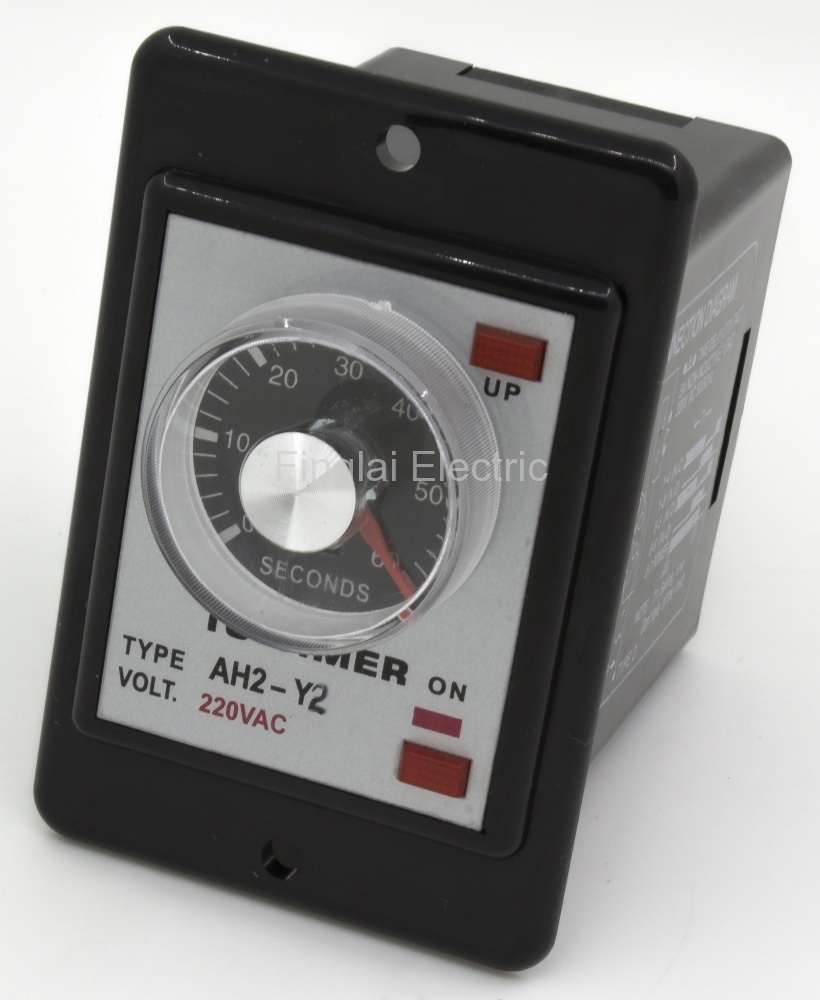

AH2-Y2-220VAC-60S指针型时间继电器带220VAC工作电压，60s延时时间
产品特征
Mouse over to zoom in
AH2-Y2-220VAC-60S指针型时间继电器带220VAC工作电压，60s延时时间
价格: ¥26.67 / 个
型号: AH2-Y2-220VAC-60S
产品名称: 时间继电器
配送至:
运费:
¥通过
Can't deliver to this region, please select other courier to try
总价:¥26.67
产品描述
▇ 触点形式和延时时间
| 型号 | 触点形式 | 延时时间 | 在线商店：
|
| AH2-N | 通电延时1转换带1转换瞬动触点 | 1s/3s/6s/10s/30s/60s/3m/6m/30m/60m | ¥26.67/ piece订购 |
| AH2-Y | 通电延时1转换带1转换瞬动触点 | 1s/3s/6s/10s/30s/60s/3m/6m/30m/60m | ¥26.67/ piece订购 (16) |
| AH2-Y2 | 通电延时2转换 | 1s/3s/6s/10s/30s/60s/3m/6m/30m/60m | 访问中... |
▇ AH2-Y2时间继电器型号说明
▇ 概况
| 型号 |
AH2 |
| 电源 |
AC：12，24，36，48，110，220或380V；DC：12或24V |
| 允许电压范围 |
85%～110%额定工作电压（DC12V为90%～110%） |
| 消耗功率 |
最大3W |
| 设定方式 |
旋钮 |
| 显示方法 |
LED |
| 开孔尺寸 |
61 10x50 10 mm |
| 触点容量 |
3A@250Vac, 5A@28Vdc |
| 重复精度 |
±0.3%, ±0.05 s |
| 设定误差 |
±0.5%, ±0.05 s |
| 安装方式 |
插座式 |
| 机械寿命 |
1x106 |
| 电气寿命 |
1x105 |
| 操作温度 |
0到50℃ |
| 操作湿度 |
最大95%RH，无冷凝 |
▇ AH2-Y2时间继电器子型号
| 序号 |
型号 |
工作电压 |
延时时间 |
起订量 |
单价 |
相关产品 |
| 1 |
AH2-Y2-220VAC-30S |
220VAC |
30s |
1 |
¥26.67 |
订购 |
| 2 |
AH2-Y2-220VAC-60S |
220VAC |
60s |
1 |
¥26.67 |
访问中... |
| 3 |
AH2-Y2-220VAC-30M |
220VAC |
30min |
1 |
¥26.67 |
订购 |
| 4 |
AH2-Y2-220VAC-60M |
220VAC |
60min |
1 |
¥26.67 |
订购 |
| 5 |
AH2-Y2-220VAC-6S |
220VAC |
6s |
1 |
¥26.67 |
订购 展开 |
| 6 |
AH2-Y2-110VAC-30S |
110VAC |
30s |
1 |
¥26.67 |
订购 |
| 7 |
AH2-Y2-110VAC-60S |
110VAC |
60s |
1 |
¥26.67 |
订购 |
| 8 |
AH2-Y2-110VAC-30M |
110VAC |
30min |
1 |
¥26.67 |
订购 |
| 9 |
AH2-Y2-110VAC-60M |
110VAC |
60min |
1 |
¥26.67 |
订购 |
| 10 |
AH2-Y2-24VDC-30S |
24VDC |
30s |
1 |
¥26.67 |
订购 |
| 11 |
AH2-Y2-24VDC-60S |
24VDC |
60s |
1 |
¥26.67 |
订购 |
| 12 |
AH2-Y2-24VDC-30M |
24VDC |
30min |
1 |
¥26.67 |
订购 |
| 13 |
AH2-Y2-24VDC-60M |
24VDC |
60min |
1 |
¥26.67 |
订购 |
| 14 |
AH2-Y2-12VDC-30S |
12VDC |
30s |
1 |
¥26.67 |
订购 |
| 15 |
AH2-Y2-12VDC-60S |
12VDC |
60s |
1 |
¥26.67 |
订购 |
| 16 |
AH2-Y2-12VDC-30M |
12VDC |
30min |
1 |
¥26.67 |
订购 |
| 17 |
AH2-Y2-12VDC-60M |
12VDC |
60min |
1 |
¥26.67 |
订购 |
包装细节
产品数量: 1pc
包裹重量: 0.3kg
包裹尺寸: 14.5 x 8.5 x 10.5 cm
