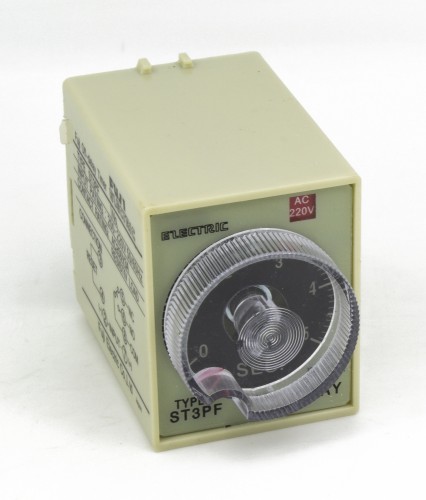

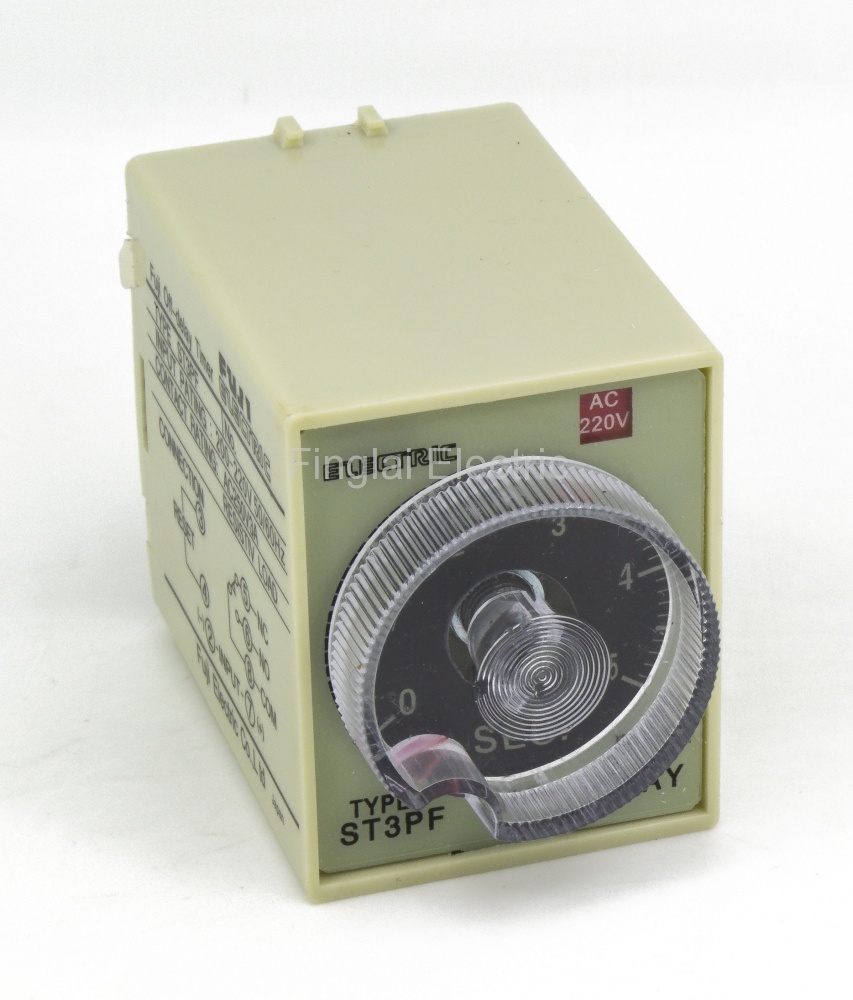

ST3PF系列断电延时1组转换超级时间继电器

产品描述
▇ 触点形式和延时时间
型号触点形式延时时间在线商店：
ST3PF断电延时1转换1s/5s/10s/30s/60s/2min/3min访问中...
ST3PF-T1¥26.97 - 36.64/ piece订购 (6)
▇ ST3PF时间继电器型号说明
▇ 概况
型号 ST3PF
电源 AC：12，24，36，48，110，220或380V；DC：12或24V
允许电压范围 85%～110%额定工作电压（DC12V为90%～110%）
消耗功率 最大3W
设定方式 旋钮
显示方法 LED
开孔尺寸 50.5 10x40.5 10 mm
触点容量 3A@250Vac, 5A@28Vdc
重复精度 ±0.3%, ±0.05 s
设定误差 ±0.5%, ±0.05 s
安装方式 插座式
机械寿命 1x106
电气寿命 1x105
操作温度 0到50℃
操作湿度 最大95%RH，无冷凝
▇ ST3PF时间继电器子型号
序号 型号 工作电压 延时时间 起订量 单价
1 ST3PF-220VAC-1S 220VAC 1s 1 ¥28.79
2 ST3PF-220VAC-5S 220VAC 5s 1 ¥28.79
3 ST3PF-220VAC-10S 220VAC 10s 1 ¥28.79
4 ST3PF-220VAC-30S 220VAC 30s 1 ¥25.96
5 ST3PF-220VAC-60S 220VAC 60s 1 ¥25.96
6 ST3PF-220VAC-3M 220VAC 3min 1 ¥35.03
7 ST3PF-220VAC-5M 220VAC 5min 1 ¥38.29
8 ST3PF-220VAC-10M 220VAC 10min 1 ¥38.29
9 ST3PF-110VAC-1S 110VAC 1s 1 ¥28.79
10 ST3PF-110VAC-5S 110VAC 5s 1 ¥28.79
11 ST3PF-110VAC-10S 110VAC 10s 1 ¥28.79
12 ST3PF-110VAC-30S 110VAC 30s 1 ¥28.79
13 ST3PF-110VAC-60S 110VAC 60s 1 ¥28.79
14 ST3PF-110VAC-3M 110VAC 3min 1 ¥35.03
15 ST3PF-110VAC-5M 110VAC 5min 1 ¥38.29
16 ST3PF-110VAC-10M 110VAC 10min 1 ¥38.29
17 ST3PF-24V-1S 24VAC/DC 1s 1 ¥28.79
18 ST3PF-24V-5S 24VAC/DC 5s 1 ¥28.79
19 ST3PF-24V-10S 24VAC/DC 10s 1 ¥28.79
20 ST3PF-24V-30S 24VAC/DC 30s 1 ¥28.79
21 ST3PF-24V-60S 24VAC/DC 60s 1 ¥28.79
22 ST3PF-24V-3M 24VAC/DC 3min 1 ¥35.03
23 ST3PF-24V-5M 24VAC/DC 5min 1 ¥38.29
24 ST3PF-24V-10M 24VAC/DC 10min 1 ¥38.29
25 ST3PF-12V-1S 12VAC/DC 1s 1 ¥28.79
26 ST3PF-12V-5S 12VAC/DC 5s 1 ¥28.79
27 ST3PF-12V-10S 12VAC/DC 10s 1 ¥28.79
28 ST3PF-12V-30S 12VAC/DC 30s 1 ¥28.79
29 ST3PF-12V-60S 12VAC/DC 60s 1 ¥28.79
30 ST3PF-12V-3M 12VAC/DC 3min 1 ¥35.03
31 ST3PF-12V-5M 12VAC/DC 5min 1 ¥38.29
32 ST3PF-12V-10M 12VAC/DC 10min 1 ¥38.29
