AH3-3系列time relay

主要子型号
Mouse over to zoom in
价格: ¥22.52 / 个

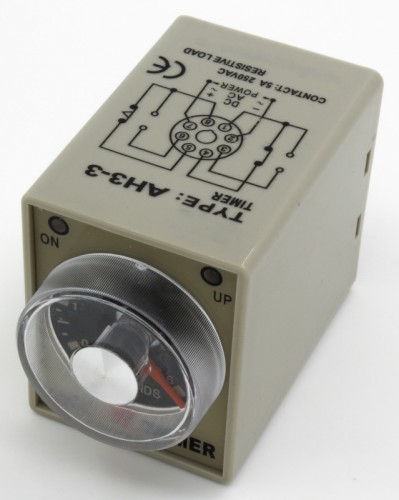

型号: AH3-3-N220VAC-6S
产品名称: Time relay
查看细节
产品描述
▇ 触点形式和延时时间
型号触点形式延时时间在线商店：
AH3-1通电延时1转换1s/3s/6s/10s/30s/60s/3m/6m/30m/60m
AH3-2通电延时2转换1s/3s/6s/10s/30s/60s/3m/6m/30m/60m¥22.52 - 25.35/ piece订购 (59)
AH3-3通电延时1转换带1转换瞬动触点1s/3s/6s/10s/30s/60s/3m/6m/30m/60m访问中...
▇ AH3-3time relay型号说明
▇ 概况
型号 AH3
电源 AC：12，24，36，48，110，220或380V；DC：12或24V
允许电压范围 85%～110%额定工作电压（DC12V为90%～110%）
消耗功率 最大3W
设定方式 旋钮
显示方法 LED
开孔尺寸 50.5 10x40.5 10 mm
触点容量 3A@250Vac, 5A@28Vdc
重复精度 ±0.3%, ±0.05 s
设定误差 ±0.5%, ±0.05 s
安装方式 插座式
机械寿命 1x106
电气寿命 1x105
操作温度 0到50℃
操作湿度 最大95%RH，无冷凝
▇ AH3-3time relay子型号
序号 型号 插座 工作电压 延时时间 起订量 单价
1 AH3-3-N220VAC-1S 无 220VAC 1s 1 ¥22.52
2 AH3-3-N220VAC-3S 无 220VAC 3s 1 ¥22.52
3 AH3-3-N220VAC-6S 无 220VAC 6s 1 ¥22.52
4 AH3-3-N220VAC-10S 无 220VAC 10s 1 ¥22.52
5 AH3-3-N220VAC-30S 无 220VAC 30s 1 ¥22.52
6 AH3-3-N220VAC-60S 无 220VAC 60s 1 ¥22.52
7 AH3-3-N220VAC-3M 无 220VAC 3min 1 ¥22.52
8 AH3-3-N220VAC-6M 无 220VAC 6min 1 ¥22.52
9 AH3-3-N220VAC-10M 无 220VAC 10min 1 ¥22.52
10 AH3-3-N220VAC-30M 无 220VAC 30min 1 ¥22.52
11 AH3-3-N220VAC-60M 无 220VAC 60min 1 ¥22.52
12 AH3-3-N110VAC-1S 无 110VAC 1s 1 ¥22.52
13 AH3-3-N110VAC-3S 无 110VAC 3s 1 ¥22.52
14 AH3-3-N110VAC-6S 无 110VAC 6s 1 ¥22.52
15 AH3-3-N110VAC-10S 无 110VAC 10s 1 ¥22.52
16 AH3-3-N110VAC-30S 无 110VAC 30s 1 ¥22.52
17 AH3-3-N110VAC-60S 无 110VAC 60s 1 ¥22.52
18 AH3-3-N110VAC-3M 无 110VAC 3min 1 ¥22.52
19 AH3-3-N110VAC-6M 无 110VAC 6min 1 ¥22.52
20 AH3-3-N110VAC-10M 无 110VAC 10min 1 ¥22.52
21 AH3-3-N110VAC-30M 无 110VAC 30min 1 ¥22.52
22 AH3-3-N110VAC-60M 无 110VAC 60min 1 ¥22.52
23 AH3-3-N24V-1S 无 24V 1s 1 ¥22.52
24 AH3-3-N24V-3S 无 24V 3s 1 ¥22.52
25 AH3-3-N24V-6S 无 24V 6s 1 ¥22.52
26 AH3-3-N24V-10S 无 24V 10s 1 ¥22.52
27 AH3-3-N24V-30S 无 24V 30s 1 ¥22.52
28 AH3-3-N24V-60S 无 24V 60s 1 ¥22.52
29 AH3-3-N24V-3M 无 24V 3min 1 ¥22.52
30 AH3-3-N24V-6M 无 24V 6min 1 ¥22.52
31 AH3-3-N24V-10M 无 24V 10min 1 ¥22.52
32 AH3-3-N24V-30M 无 24V 30min 1 ¥22.52
33 AH3-3-N24V-60M 无 24V 60min 1 ¥22.52
34 AH3-3-N12V-1S 无 12V 1s 1 ¥22.52
35 AH3-3-N12V-3S 无 12V 3s 1 ¥22.52
36 AH3-3-N12V-6S 无 12V 6s 1 ¥22.52
37 AH3-3-N12V-10S 无 12V 10s 1 ¥22.52
38 AH3-3-N12V-30S 无 12V 30s 1 ¥22.52
39 AH3-3-N12V-60S 无 12V 60s 1 ¥22.52
40 AH3-3-N12V-3M 无 12V 3min 1 ¥22.52
41 AH3-3-N12V-6M 无 12V 6min 1 ¥22.52
42 AH3-3-N12V-10M 无 12V 10min 1 ¥22.52
43 AH3-3-N12V-30M 无 12V 30min 1 ¥22.52
44 AH3-3-N12V-60M 无 12V 60min 1 ¥22.52
45 AH3-3-N380VAC-1S 无 380VAC 1s 1 ¥22.52
46 AH3-3-N380VAC-3S 无 380VAC 3s 1 ¥22.52
47 AH3-3-N380VAC-6S 无 380VAC 6s 1 ¥22.52
48 AH3-3-N380VAC-10S 无 380VAC 10s 1 ¥22.52
49 AH3-3-N380VAC-30S 无 380VAC 30s 1 ¥22.52
50 AH3-3-N380VAC-60S 无 380VAC 60s 1 ¥22.52
51 AH3-3-N380VAC-3M 无 380VAC 3min 1 ¥22.52
52 AH3-3-N380VAC-6M 无 380VAC 6min 1 ¥22.52
53 AH3-3-N380VAC-10M 无 380VAC 10min 1 ¥22.52
54 AH3-3-N380VAC-30M 无 380VAC 30min 1 ¥22.52
55 AH3-3-N380VAC-60M 无 380VAC 60min 1 ¥22.52
56 AH3-3-S220VAC-30S 有 220VAC 30s 1 ¥22.57
57 AH3-3-S220VAC-60S 有 220VAC 60s 1 ¥22.57
58 AH3-3-S220VAC-30M 有 220VAC 30min 1 ¥22.57
59 AH3-3-S220VAC-60M 有 220VAC 60min 1 ¥22.57
